OEM Replacement Metso Jaw Plates

Manufacturing Process of OEM Replacement Metso Jaw Plates

We maintain a large inventory of existing molds for many popular Metso jaw crusher models, allowing us to provide faster production, stable quality, and shorter delivery times for global customers.

Our OEM replacement Metso jaw plates are manufactured using advanced casting technology, strict material control, and professional heat treatment processes to ensure excellent compatibility and wear performance.

1. Existing Mold Inventory for Fast Production

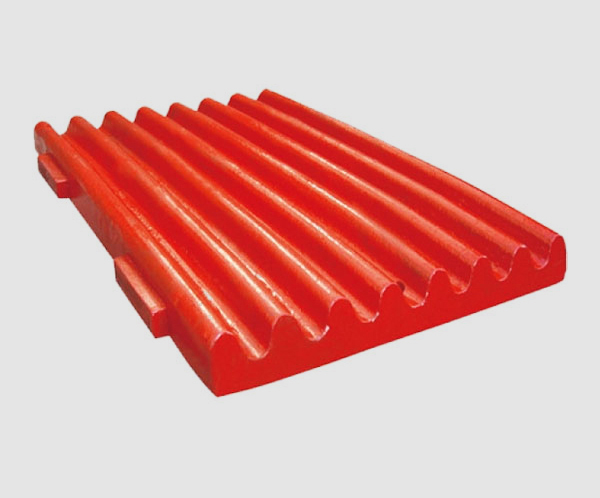

We already have ready-made molds for many commonly used Metso jaw crusher models, including:

• C96
• C106
• C110
• C116
• C120
• C125
• C140
• C150
• C160
• C200

This allows us to:

• Start production quickly
• Reduce mold development time
• Shorten delivery lead time
• Maintain stable dimensional accuracy
• Support urgent replacement requirements

For special models or customized designs, we can also manufacture according to drawings or samples.

2. High-Quality Alloy Material Melting

We use high-grade raw materials and advanced melting systems to ensure stable chemical composition and excellent wear resistance.

Material Options Include:

• Mn13Cr2
• Mn18Cr2
• Mn22Cr2
• TIC Insert Composite Materials

Quality Control During Melting:

• Spectrometer chemical analysis
• Strict alloy proportion control
• Temperature monitoring
• Impurity control

3. Precision Casting Process

Our experienced foundry team uses optimized casting techniques to improve product quality and reduce casting defects.

Advantages of Our Casting Process:

• Stable casting structure
• Accurate dimensions
• Smooth surface finish
• Reduced porosity and cracking risk

This ensures reliable installation and long service life under demanding crushing conditions.

4. Professional Heat Treatment

Proper heat treatment is critical for crusher jaw plate performance.

Our heat treatment process improves:

• Toughness
• Impact resistance
• Work-hardening capability
• Wear resistance

Different material grades use optimized heat treatment parameters according to application requirements.

5. Machining and Dimensional Inspection

After casting and heat treatment, jaw plates undergo finishing and dimensional inspection to ensure OEM compatibility.

Inspection Includes:

• Key dimension measurement
• Mounting surface inspection
• Hole position inspection
• Weight control

This helps ensure easy installation and stable crusher operation.

6. Final Quality Control Before Shipment

Every batch of OEM replacement Metso jaw plates undergoes strict inspection before delivery.

Final Inspection Items:

• Hardness testing
• Chemical composition testing
• Surface quality inspection
• Dimensional verification
• Visual crack inspection

Only qualified products are approved for shipment.

7. Export Packaging and Worldwide Delivery

To ensure safe transportation, all jaw plates are packed using strong export-standard packaging suitable for sea freight and international logistics.

We support worldwide delivery for:

• Mining companies
• Quarry operators
• Crusher dealers
• Equipment distributors
• OEM partners
